Growatt SPH 10000TL-HU-US 48V 10.0KW Split-Phase Hybrid Inverter | 15000W PV Input| 10000W Output | 120V/240V Split-Phase | Compatible with Growatt AXE LV Battery and Lead-acid Battery

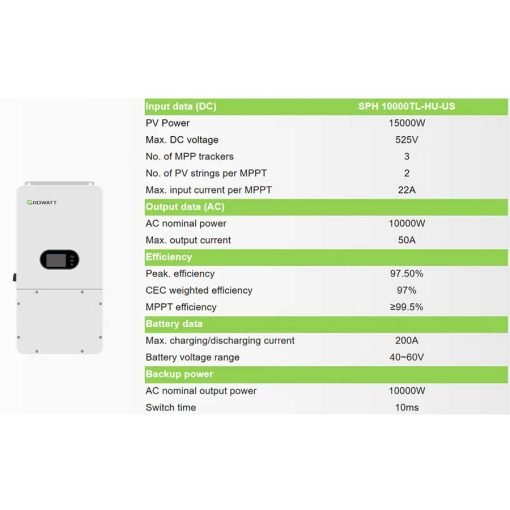

�� Product Introduction The Growatt SPH 10000TL-HU-US 48V 10kW hybrid inverter offers split phase output at 120/240Vac, allow maxmium 15000W PV input and It includes 3 built-in MPPTs and protection against overload, over temperature, and short circuits. Additionally,. It features configurable battery charging current and voltage, as well as AC/Solar/Generator charger priority settings via its touch screen. The SPH 10000TL-HU-US 10kW hybrid inverter can compatible with both grid voltage and generator power, it automatically restarts when AC power is lost. The inverter’s smart battery charger is designed for optimal battery performance and supports WIFI/4G/Bluetooth monitoring. Additionally, it allows for programmable supply priority between battery and grid, and supports multiple operation modes: On Grid Mode, Self-consumption Mode, and Zero Export Limit. Product Overview Manufacturer Growatt Type Split-phase Hybrid Storage Inverter Max PV Input 15000W Max Output 10000W Voltage Output 120V/240V Split MPP Trackers 3 Max Battery charge/discharge current 200A Max Efficiency 97.5% Compatible Battery Growatt AXE / ALP Battery / Acid Battery/ Third party brand battery with RS485 protocol Electronics Protection Degree IP65 ( NEMA 4 ) Warranty 10 years Communications CAN2.0, RS485, USB Certificate UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21   Key Features Leading Functions – UPS function, 10ms transition – Scalable system available – Up to 200A charging/discharging current High Yields – DC/AC ratio up to 1.5 – MPP trackers up to 3 – Max. efficiency 97.5% System Compatibility – Support DC-Coupled AC-Coupled System; – Support diesel and gas generator – Support Lithium battery and lead-acid battery PV Input Data Max.PV Power Input: 15000W Max.DC Voltage: 525V No. of MPPT: 3 No. of PV Strings per MPPT: 2 Max. input current per MPPT: 22A Max. short-circuit current per MPPT: 27A Output Data AC nominal power: 10000W Nominal AC Voltage output: 120V/240V Split ( 180Vac – 280Vac ) Max. output current: 50A Battery Data Battery voltage range: 40~60V Max charging and discharging current: 200A Continuous power: 10000W Type of battery: Lithium / Lead-acid Advanced Protection & Safety UL certificated( UL1741 ), CA Rule21 PV switch integrated AC over current/voltage protection Ground fault monitoring Grid monitoring Anti-islanding protection Residual-current monitoring unit Insulation resistance monitoring AFCI protection Surge protection General data Dimensions( W/H/D ):17.32* 28.34* 9.44 inches ( 440*855*256mm ) Weight: 48.84kg / 107.8lbs Protection degree: IP65/NEMA 4 Display: LCD Communication: Wifi / 4G Warranty: 10 Years Freight This inverter gross weighs 120lb for shipping and big size, we ship it via freight truck. SHIPPING FREE for purchase 2 pieces a time Download Datasheet SPH_10000TL-HU-US_Datasheet_EN_202307.pdf User Manual & Installation Quick Guide SPH 10000TL-HU-US Introduction SPH_10000TL-HU-US_User_Manual_EN_202403.pdf  Certification SPH_10000TL-HU-US_IEEE1547_UL1741_CSAC22.2_HECO_IEEE1741SB.pdf SPH_10000TL-HU-US_FCC_Part_15C.pdf   About Growatt Growatt is a leading global manufacturer of solar inverters, energy storage solutions, and smart energy management systems. Founded in 2010, the company has grown rapidly to become a trusted brand in the renewable energy industry, with a presence in over 100 countries and regions around the world. Growatt’s innovative products are designed to maximize energy efficiency and enable customers to reduce their carbon footprint while saving money on energy bills. The company’s range of solar inverters includes both string and central inverters, which are suitable for a wide range of applications, from residential rooftops to large-scale commercial and utility-scale projects. In addition to solar inverters, Growatt also offers a range of energy storage solutions, including lithium-ion batteries and hybrid inverters. These products allow customers to store excess energy generated by their solar panels and use it when needed, further reducing their reliance on grid power. With a commitment to innovation and customer service, Growatt is dedicated to providing reliable, high-quality products and solutions that meet the evolving needs of the renewable energy industry. First Name *Last NameEmail Address *Company NamePhone NumberLeave Message0 / 180Fields with asterisk (*) are mandatorySubmit
