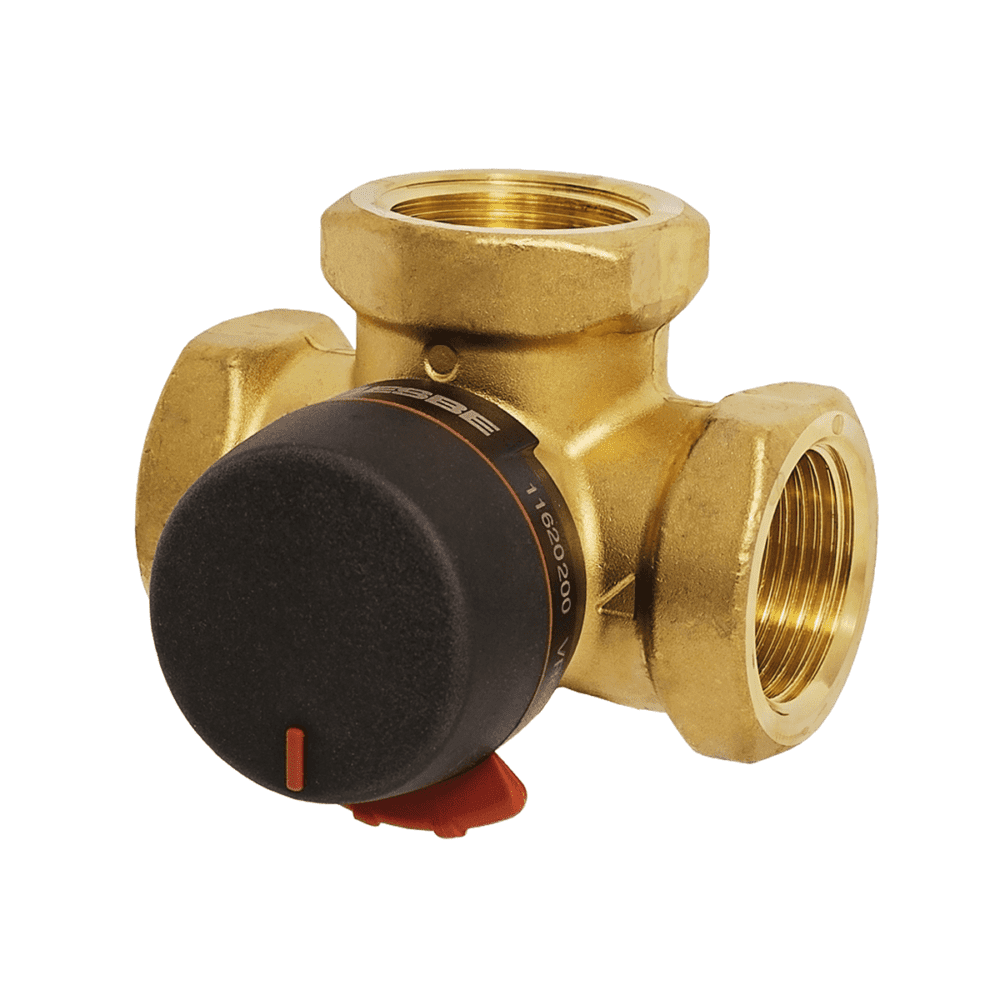

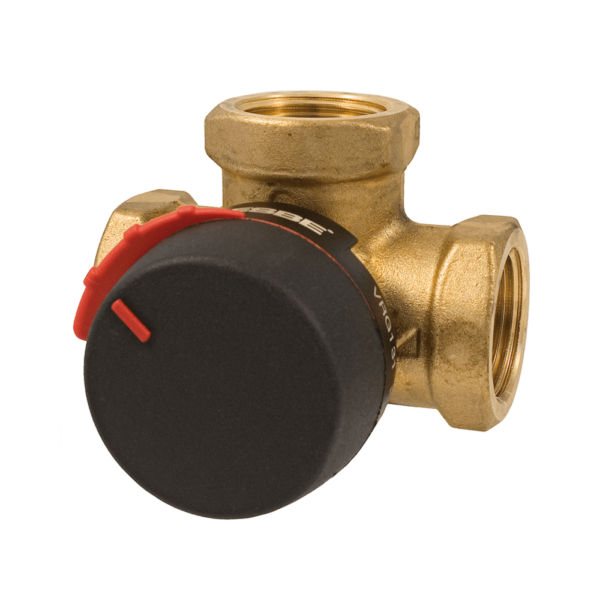

ESBE VRG131 3-Way Mixing Valve 3/4″ BSP DN20 Female 6.3 Kvs (11600900)

Description ESBE VRG131 3-Way Mixing Valve 3/4″ BSP DN20 Female 6.3 Kvs (11600900) Series VRG130 are 3-way valves suitable for mixing or diverting operation. The valves are made of high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers. Replaces 11001100 and 11050100. Features: Easy manual operation the valves are equipped with non-slip knobs and end stops for an operation angle of 90° These can be adjusted to 360° in accordance to suit the porting configuration of the customers application Valve position scale can be turned over and rotated Allowing a wide choice of mounting positions Easily automated and have extraordinary regulating accuracy thanks to the unique valve-to-actuator interface Lowest leakage rate in the market of just 0.05% The closest valve to achieve a near characteristic linear curve No linkage kit required Can be used for mixing and diverting applications Replaces the 3g cast iron ESBE valve Technical Specifications: Reference VRG131 DN 20 Kvs 6.3 Connection Rp 3/4″ A (mm) 36 B (mm) 72 C (mm) 32 D (mm) 50 E (mm) 36 Click here to view the Data Sheet Click here to view Installation Instructions
