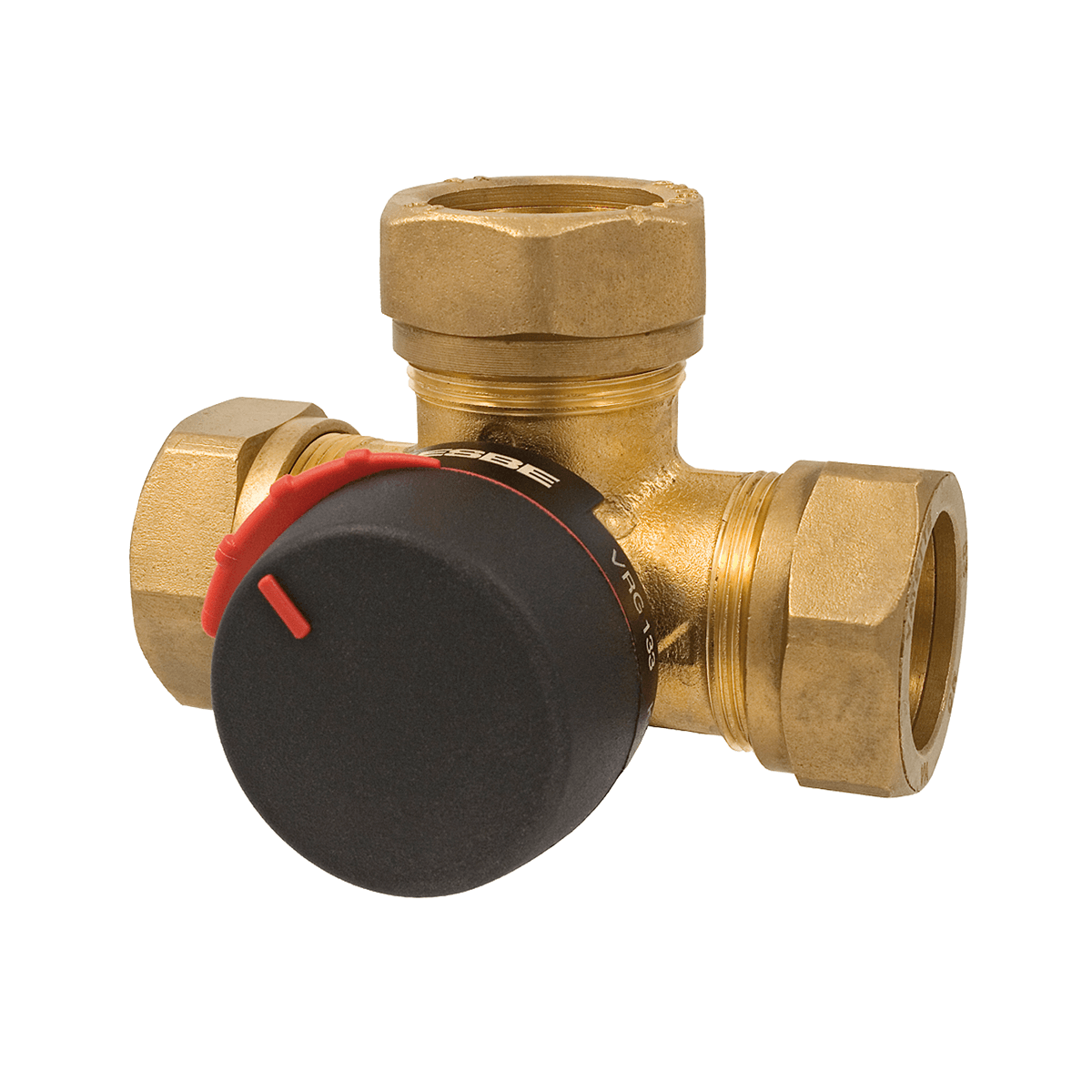

ESBE VRG231 3-Way Diverter Valve 1.5″ BSP Female 30 Kvs (11621400)

Description ESBE VRG231 3-Way Diverter Valve 1.5″ BSP Female 30 Kvs (11621400) Series VRG230 are 3-way valves suitable for midport change-over / diverting operation. The valves are made of the high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers. Replaces 11620400. Features: Easy manual operation the valves are equipped with non-slip knobs and end stops for an operation angle of 90° These can be adjusted to 360° in accordance to suit the porting configuration of the customers application Valve position scale can be turned over and rotated Allowing a wide choice of mounting positions Easily automated and have extraordinary regulating accuracy thanks to the unique valve-to-actuator interface Lowest leakage rate in the market of just 0.05% The closest valve to achieve a near characteristic linear curve No linkage kit required Can be used for mixing and diverting applications Replaces the 3g cast iron ESBE valve Technical Specifications: Reference VRG231 DN 40 Kvs 30 Connection Rp 1 1/2″ A (mm) 53 B (mm) 106 C (mm) 44 D (mm) 62 Click here to view the Data Sheet. Click here to view Installation Instructions.
