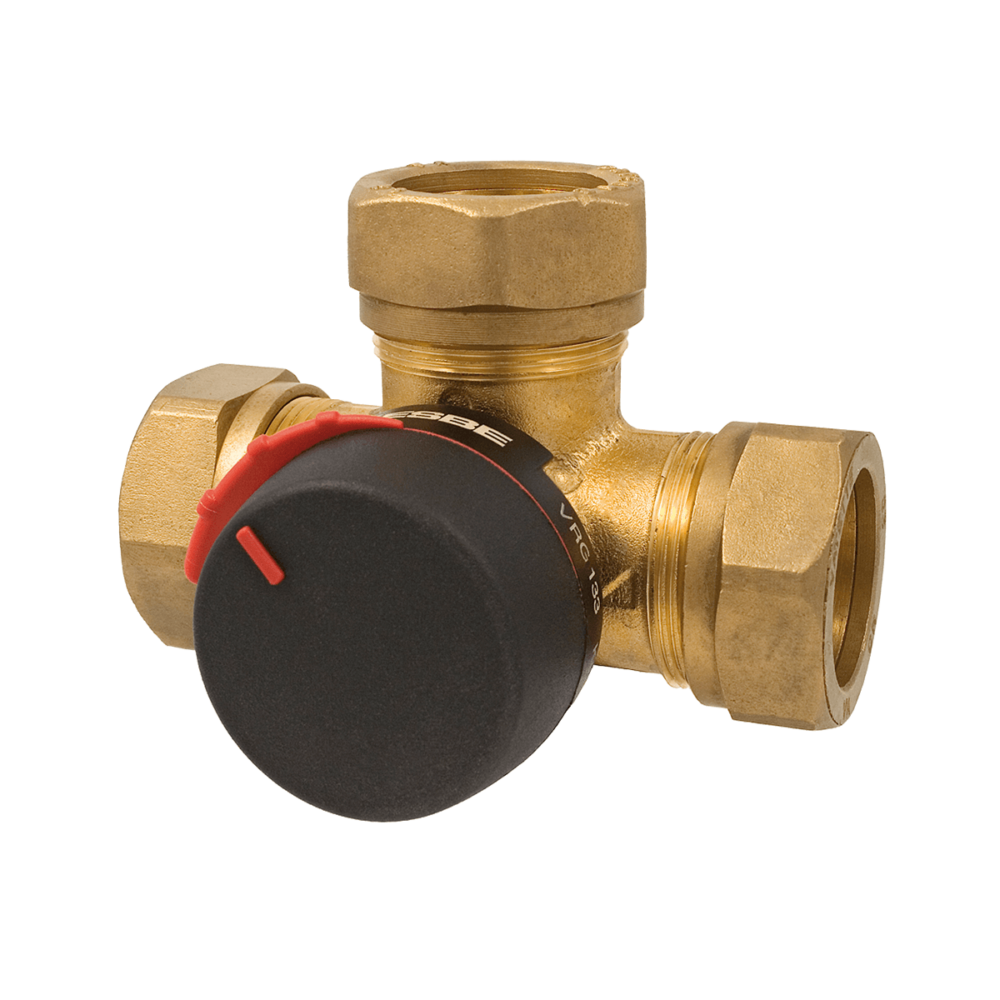

ESBE VRG331 3-Way Mixing Valve 1.25″ BSP DN32 Female 32/20 Kvs (11700300)

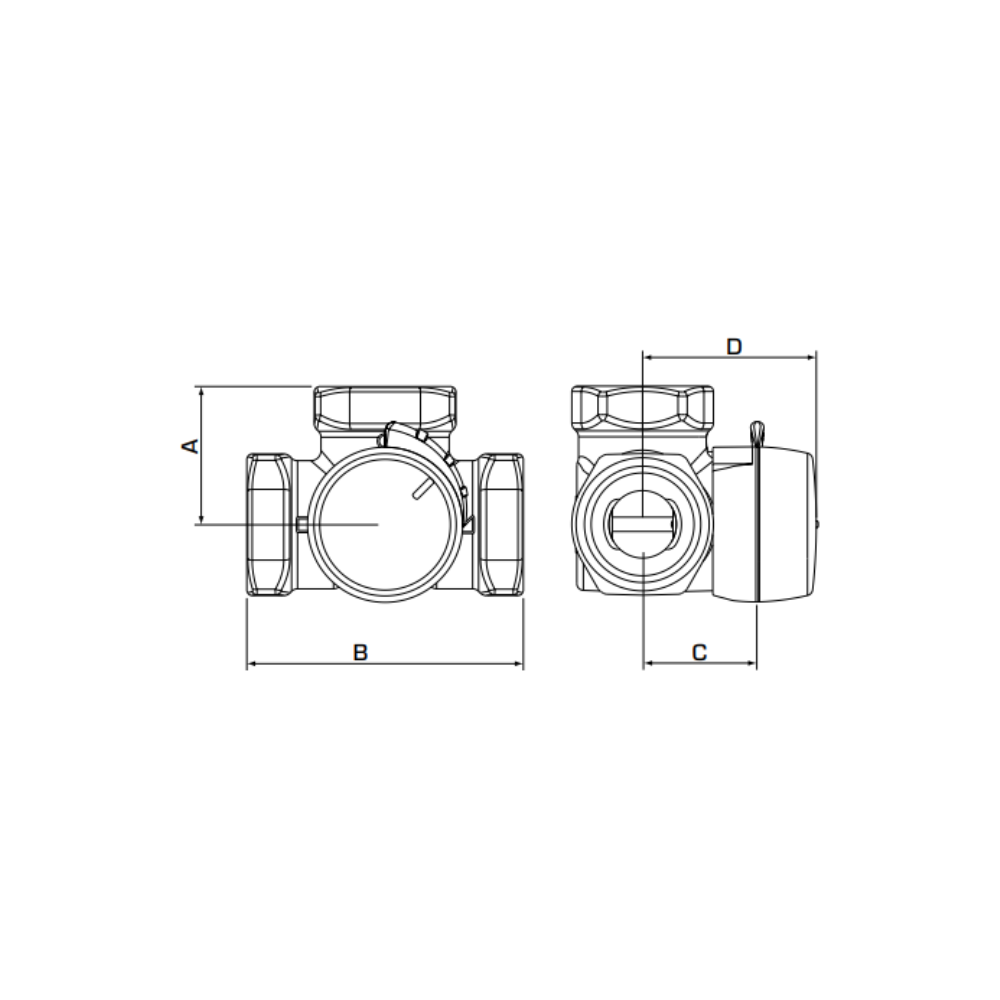

Description ESBE VRG331 3-Way Mixing Valve 1.25″ BSP DN32 Female 32/20 Kvs (11700300) Series VRG330 are valves suitable for high flow mixing or diverting operation. Basically is the valve function of series VRG330 the same as for VRG130 except the high-flow possibility. The valves are made of high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers. Features: Superb regulation for best high flow mixing or diverting performance. Lowest internal leakage on the market (<0,05%). Compact, flexible and easy to install. Long lasting and high durability. Perfect match between the valve and ESBE actuators. Technical Specifications: Reference VRG331 DN 32 Kvs ■ – ▲ 32 Kvs ■ – ● 20 Connection Rp 1 1/4″ A (mm) 47 B (mm) 94 C (mm) 37 D (mm) 55 Click here to view the Data Sheet Click here to view the Installation Instructions
